价格:￥72000.00/台
品牌:高盛
适应的压铸机吨位:50-200T
功率:3100W
机械手负载:3kgs
起订:1台
供应:20台
发货:3天内

立即购买

 东莞市高必盛压铸智能装备有限公司，主打锌合金压铸智能装备、自动化设备、包括压铸取件机械手、协作机械手、压铸高速伺服取件机、旋臂自动取件机、双进臂高速喷雾取件机、两轴、三轴横走式取件机、压铸水口全自动分离机、超声波震水口机、超声波抖水口机、多工位模块化自动水口分离机、小披锋冲床、表壳、表带智能自动化加工生产线（钻攻机、去水口机）、输送带、回炉线、回炉上料斗等等其他带PLC技术编程设备.

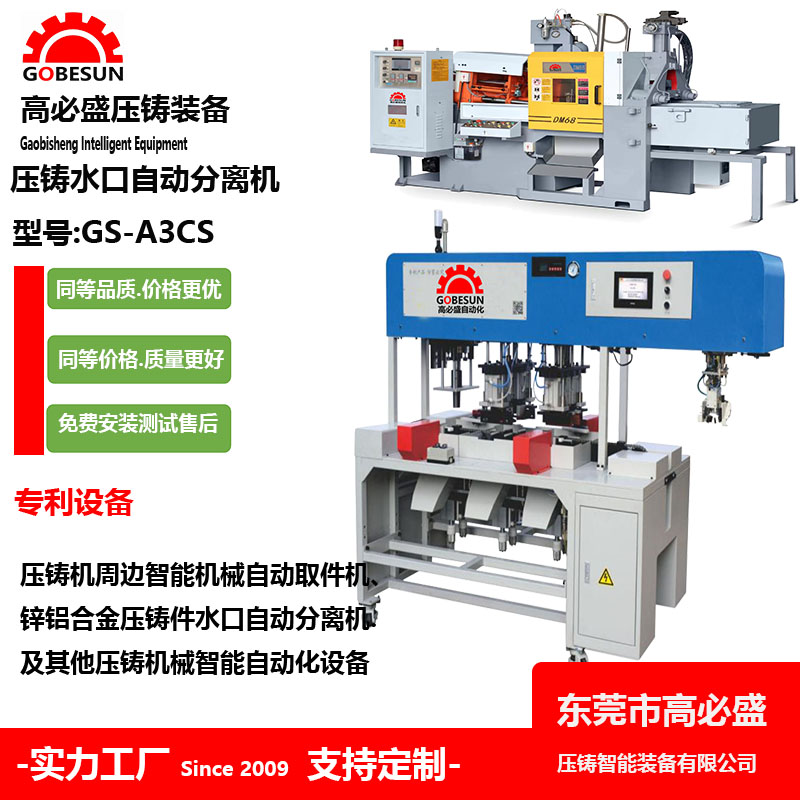

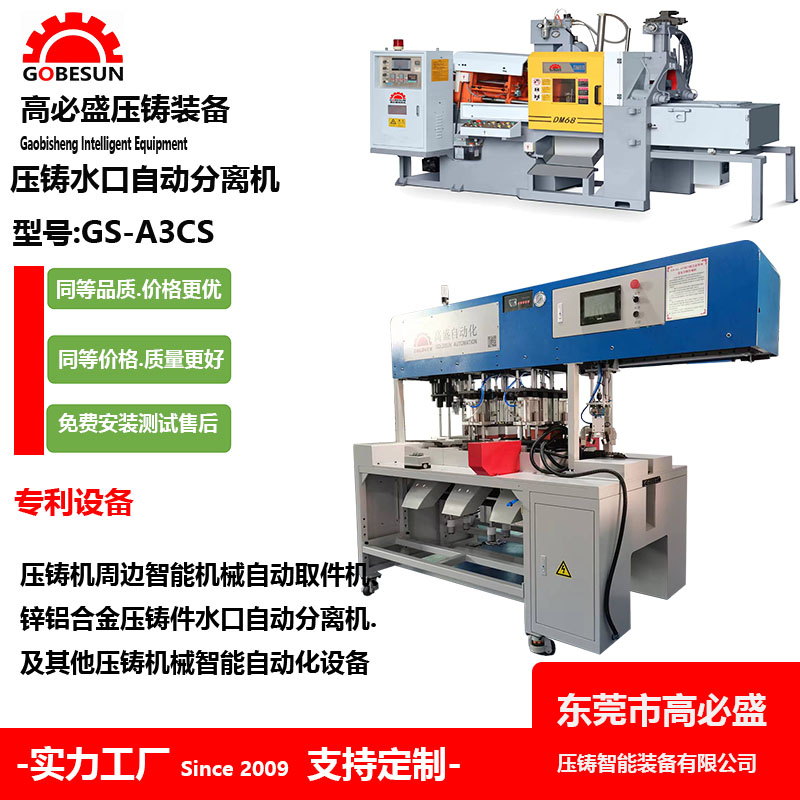

GS-A3CS 锌合金压铸全自动水口分离机参数与特性

Parameters and characteristics of zinc alloy die-casting fully automatic nozzle separator

型号Model No.	GS-A3CS
适应压铸机Applicable Die Casting Machine	38-180T
功率Power	3072W
水口直径 Diameter of Material Shank	10-35mm
冲压力 Drawing Force	20kgf
气压源Air Pressure Source	5-6.5kgf/c㎡
安装方式Installation Method	落地式standing type
工件重量 Workpiece Weight	3kgs
机械重量Machine Weight	850KGS
外观尺寸External Dimension	2260*1500*1911mm
适应产品尺寸范围Adapt to product size range	220*280mm
频率	50Hz
电流	14A
电压	AC220V



机械特性：

-多工位模块化、选择性工作组合、功能更强大、适应性更广。

-横、竖双向渣包均可以调节式通用夹具就可以去除，省去非标性夹具加工成本。

-加超声波分离产品，对产品保护更好，也更加节约更多的调机时间。

-可选择冲头先折断入料口再超声波，解决入料口比较硬导致的产品难超落分离的问题。

-代替人工分水口，降低生产成本；做到压完即可出货，提高生产效率。

-国家专利产品，弥补国内技术方面的空白。



Mechanical characteristics:



-Multi workstation modularization, selective work combination, more powerful functions, and wider adaptability.



-Both horizontal and vertical slag pockets can be removed with adjustable universal fixtures, saving the cost of non-standard fixture processing.



-Adding ultrasonic separation products provides better product protection and saves more machine adjustment time.



-You can choose to use a punch to first break the feeding port and then use ultrasound to solve the problem of difficult product separation caused by the hard feeding port.



-Replacing manual water distribution to reduce production costs; Ensure that the goods can be shipped after pressing, improving production efficiency.



-National patented products, filling the gap in domestic technology.
